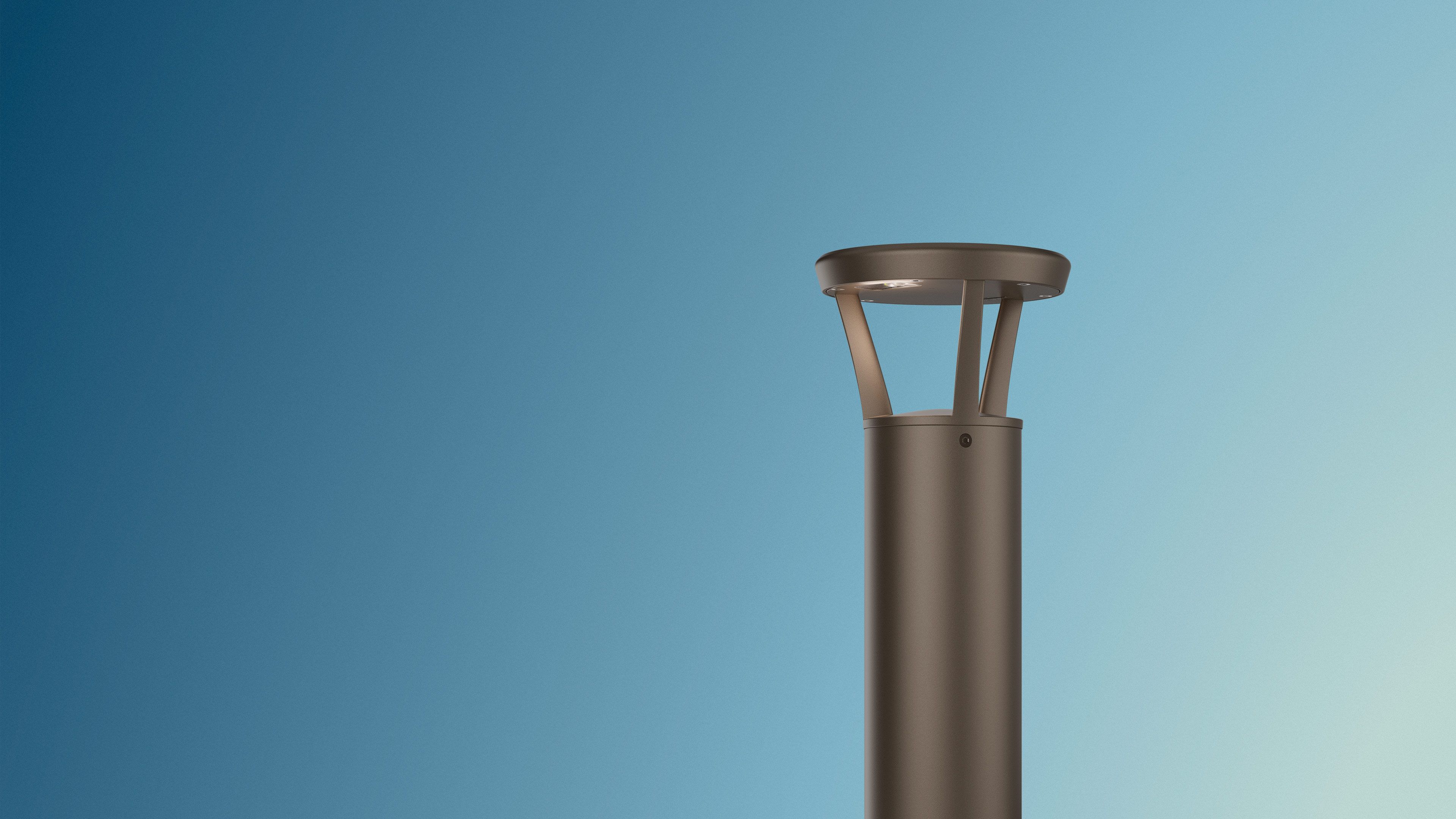

Modern metallic outdoor bollard light against a clear blue sky.

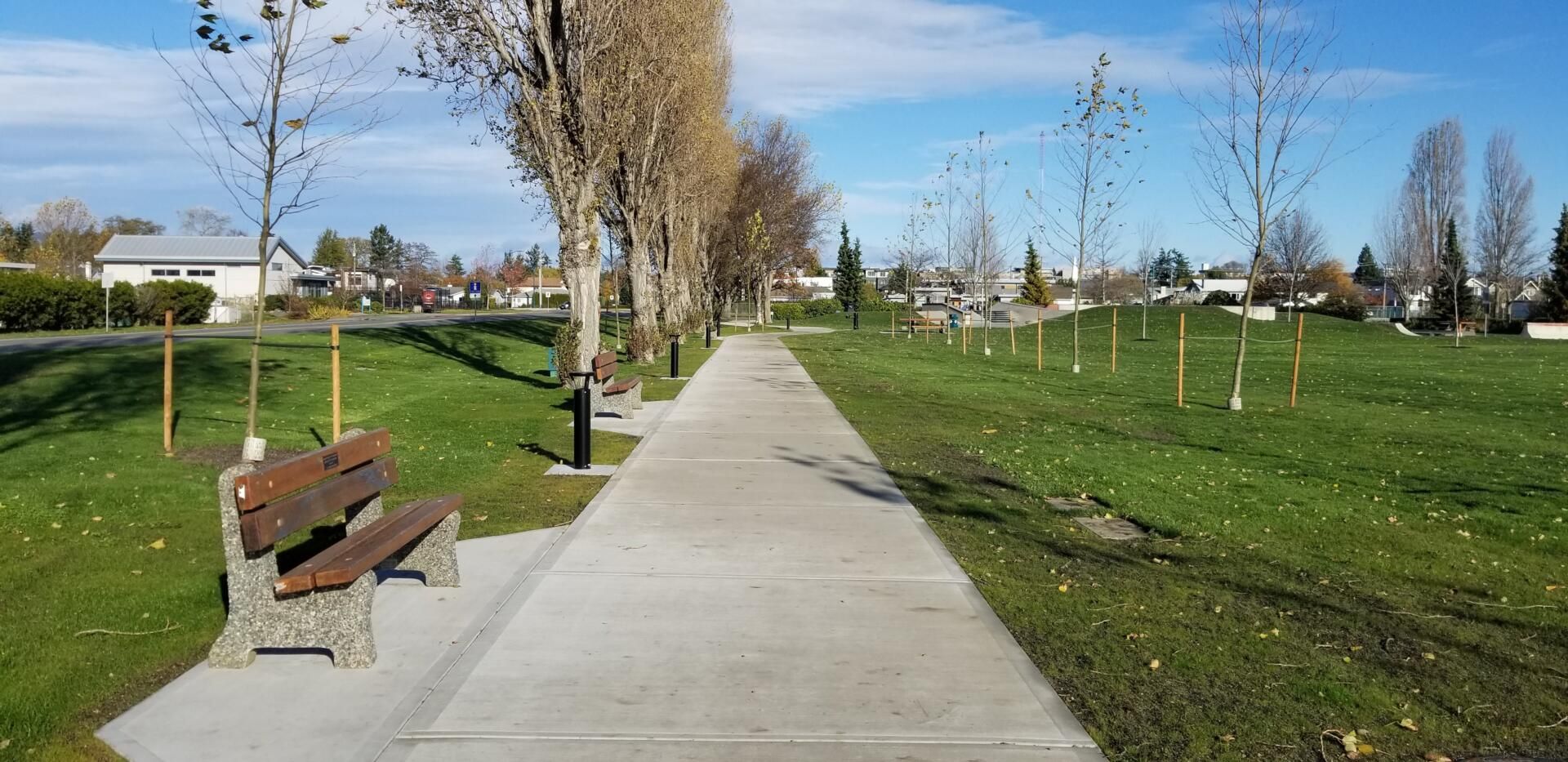

Straight concrete pathway in a park lined with benches and leafless trees on a sunny day.

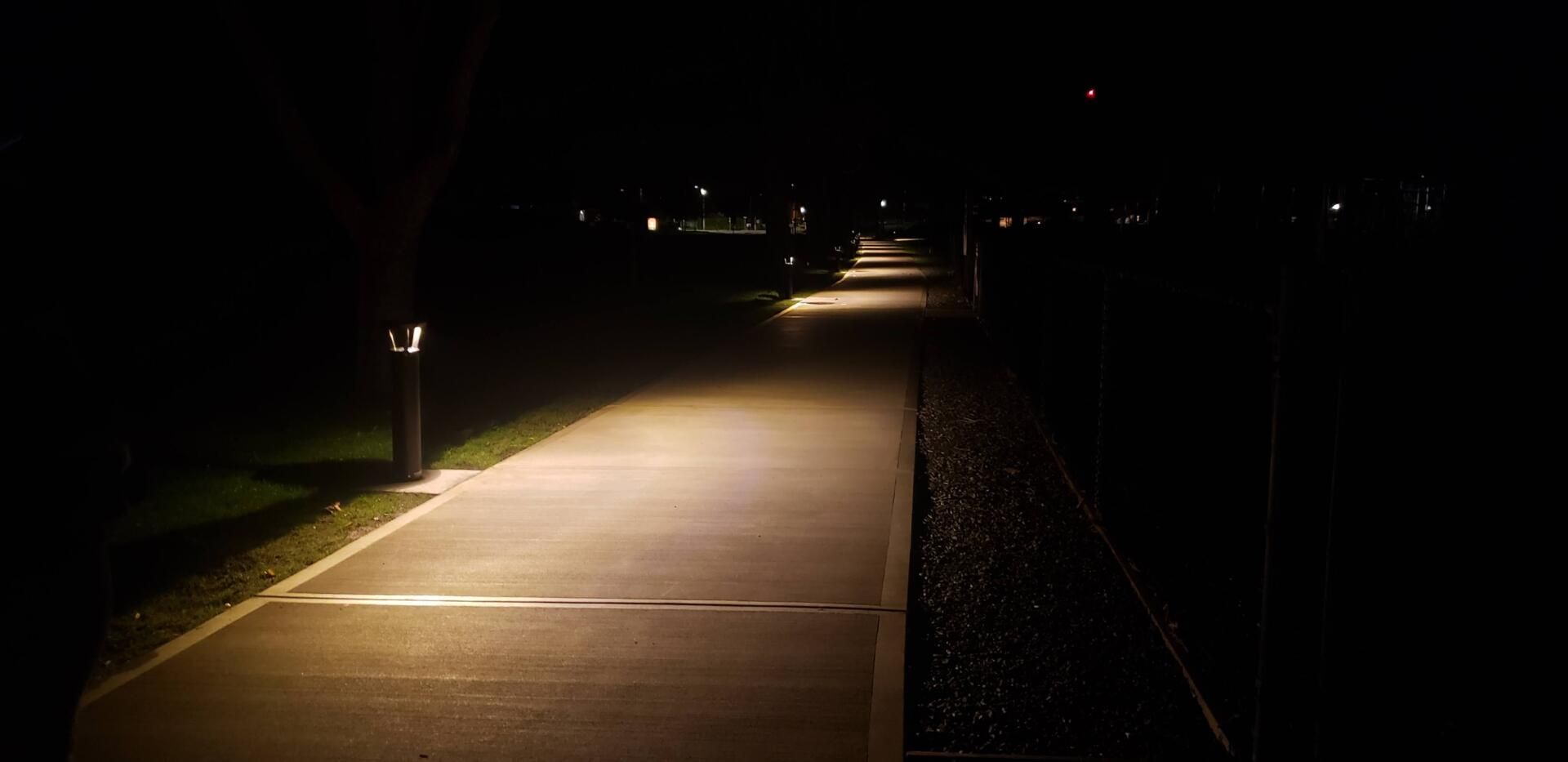

Dimly lit concrete sidewalk at night with small ground lights on the left side.

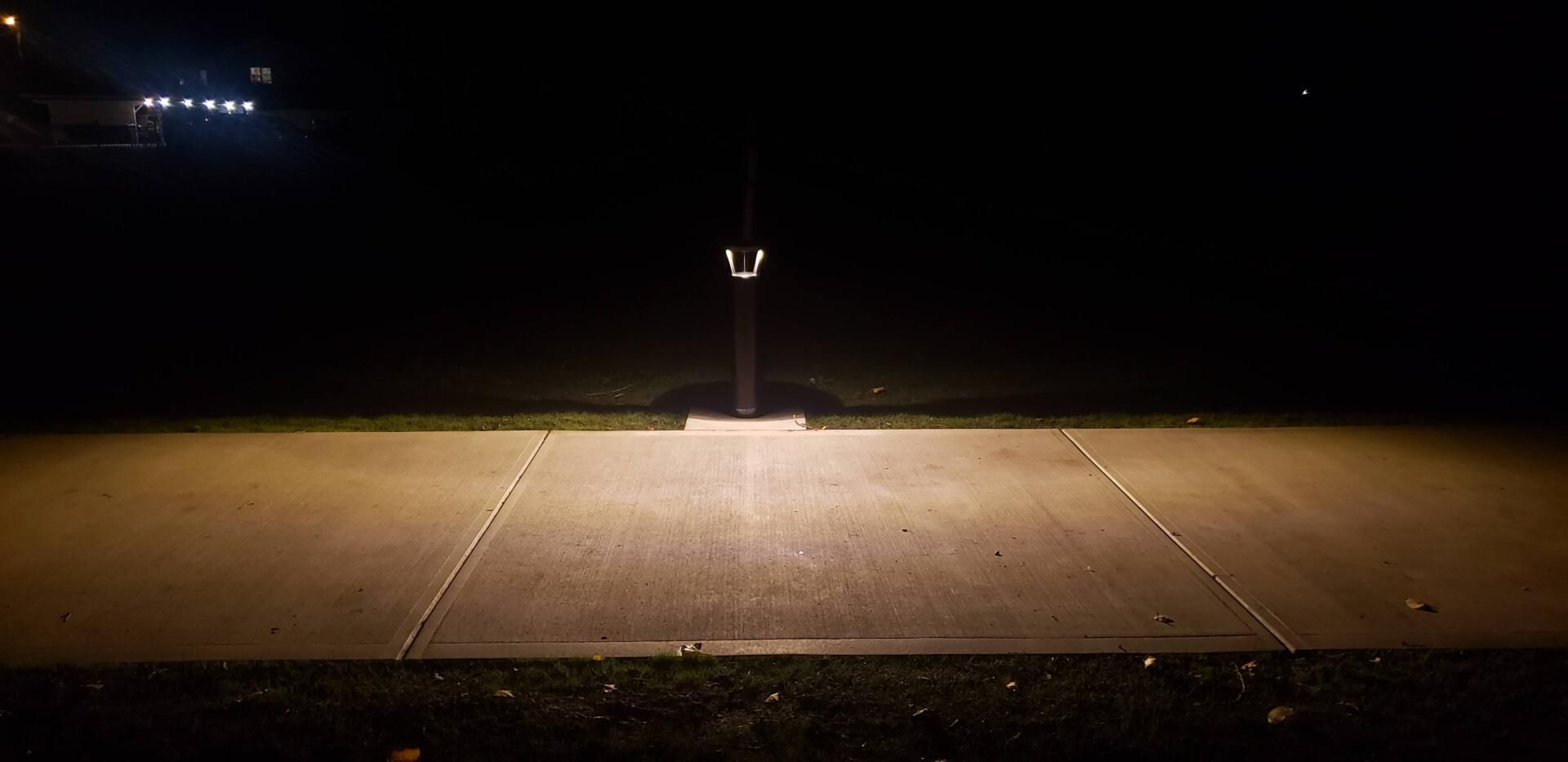

A single modern bollard light illuminating a concrete pathway at night.

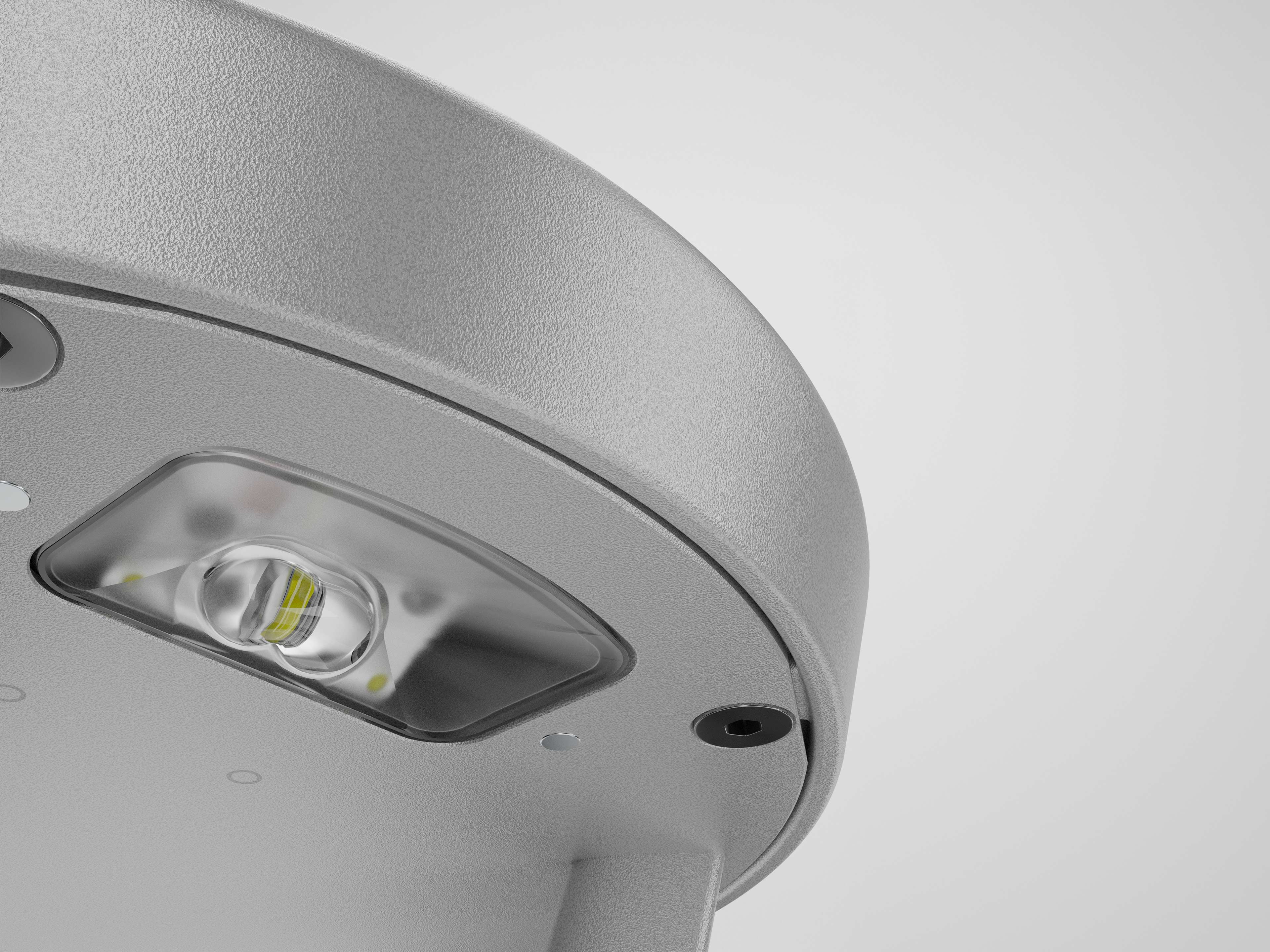

PLB - AC

This high-efficiency wired bollard is ideal for new construction, renovation, or retrofit projects looking for a durable light fixture.

request a quotedownload spec sheetDownload IES File
Best for Pathways, Parks and Parking Lots

Product Details:

•
Lumen Output: 740-1200 lm
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 3 and Type 5 full-cutoff optics
•
Heights: 14-35 in
•
Robust, vandal resistant design
•
Wildlife-friendly lighting compliant
Overview
Specifications
Resources
Warranty

Product Overview

When high-efficiency wired lighting is required, the PLB-AC is the perfect solution for pathways, plazas, and egress applications. Optimal LED performance at just 10W with full cutoff optics—ideal for new construction, renovation, or retrofit.

Available Finishes

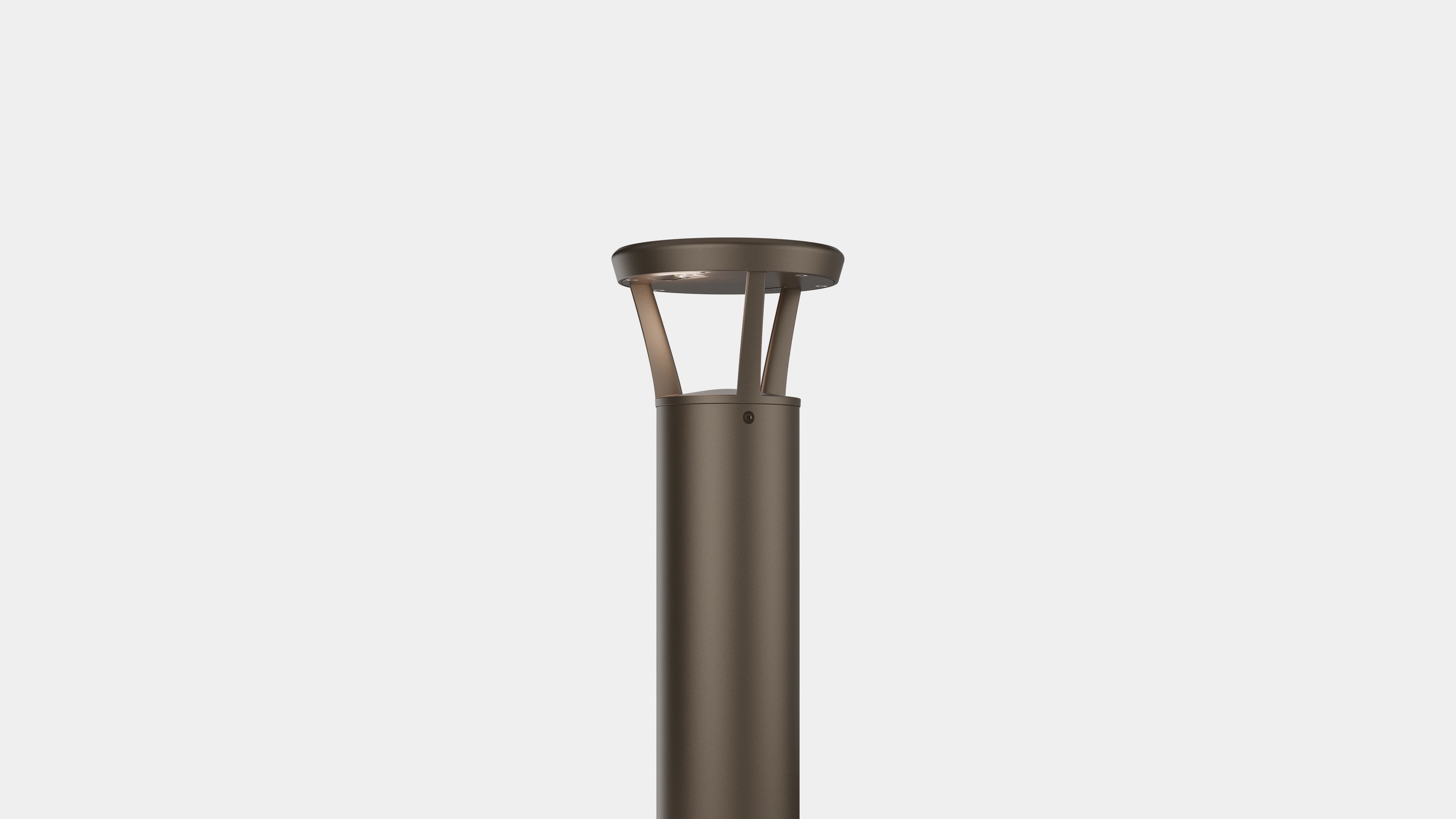

Bronze
Black

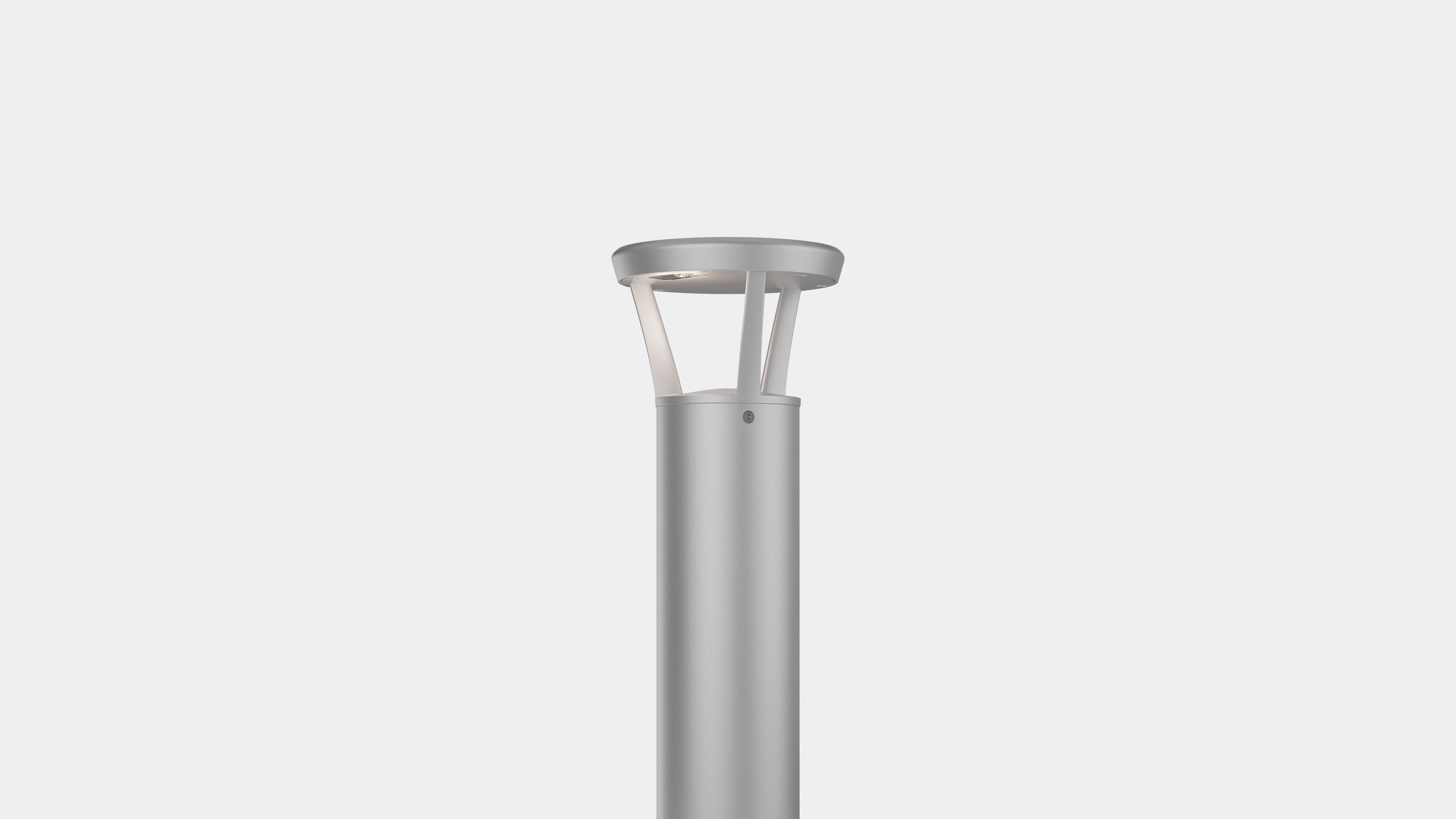

Silver
White
Modern outdoor lamp post with a cylindrical body and a circular shade on top against a plain light background.

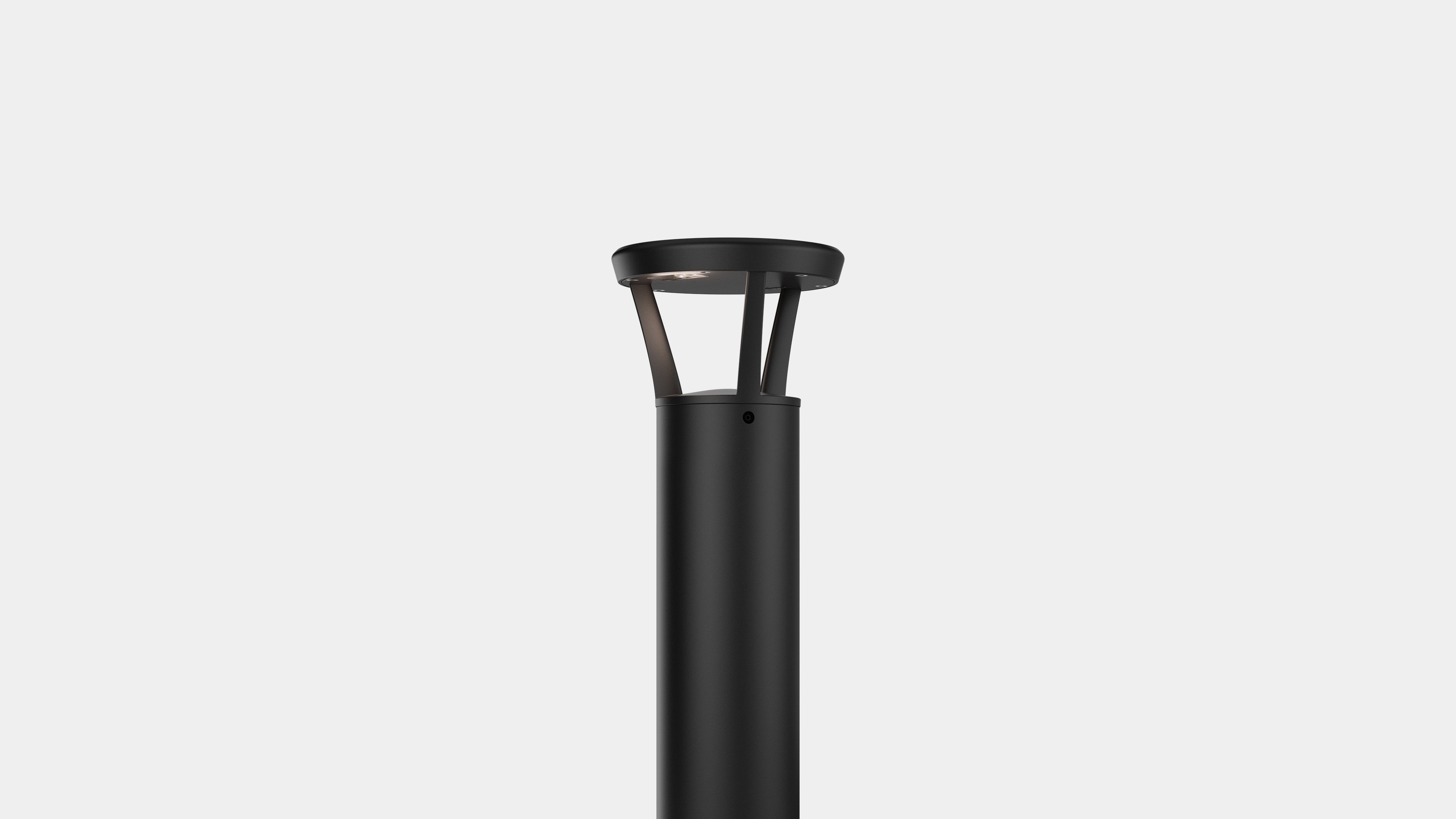

Tall black outdoor lamp post with a modern circular top against a plain light background.

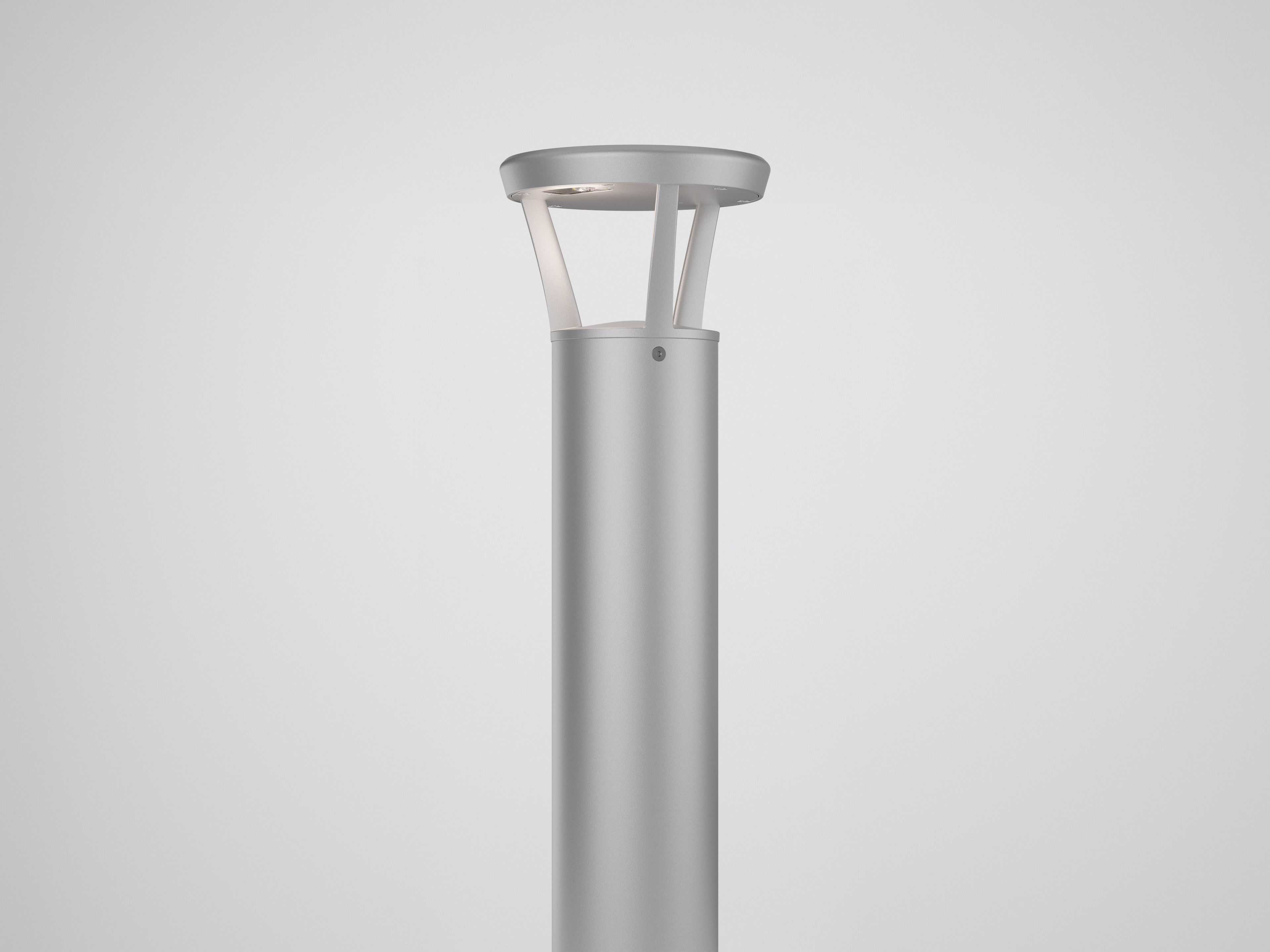

Modern cylindrical outdoor metal lamp post with round top fixture and three supporting arms against a plain light gray background.

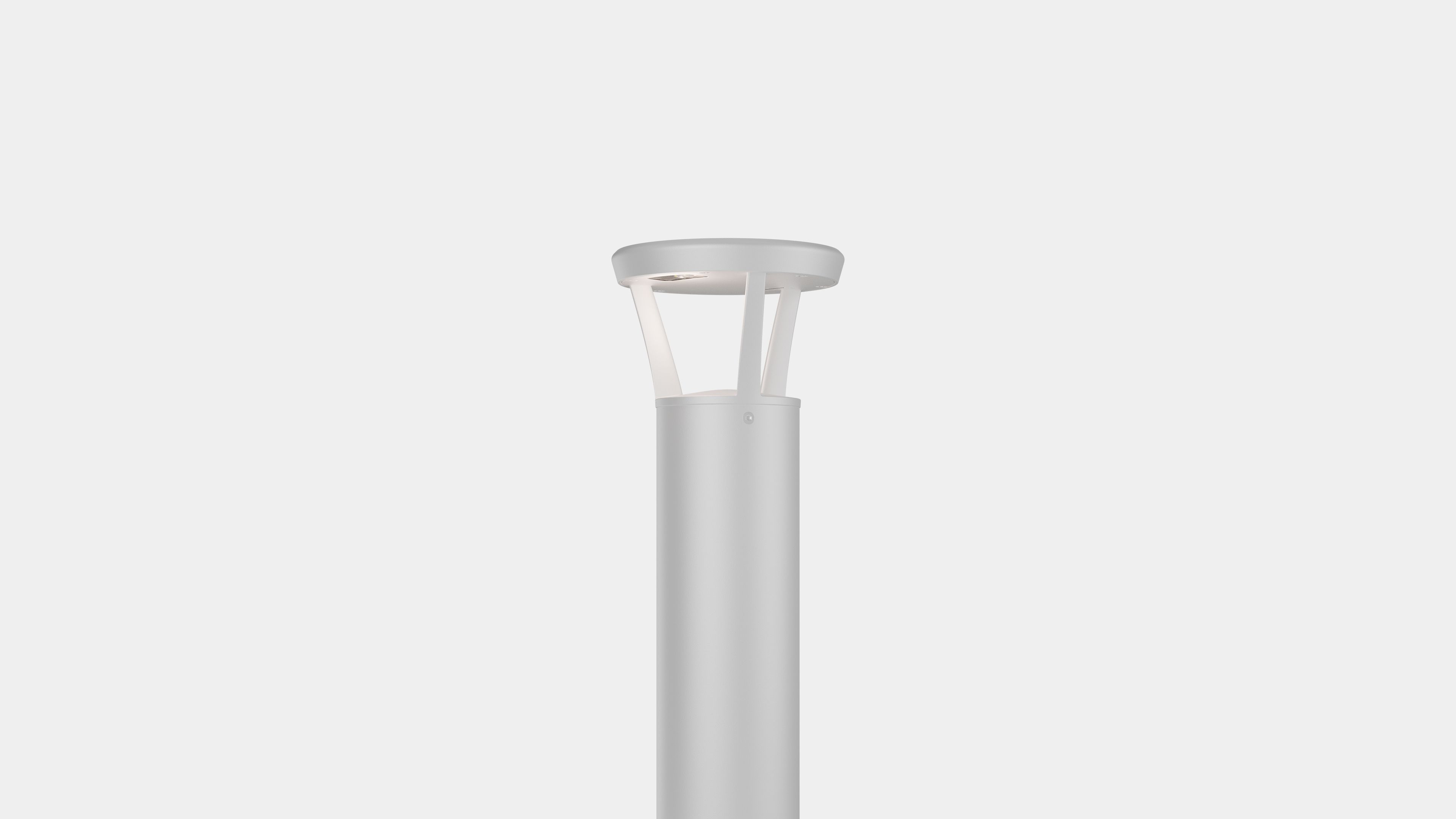

Modern white outdoor lamp post with a flat top and transparent panels on a gray background.

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff. Measurements are in footcandles.

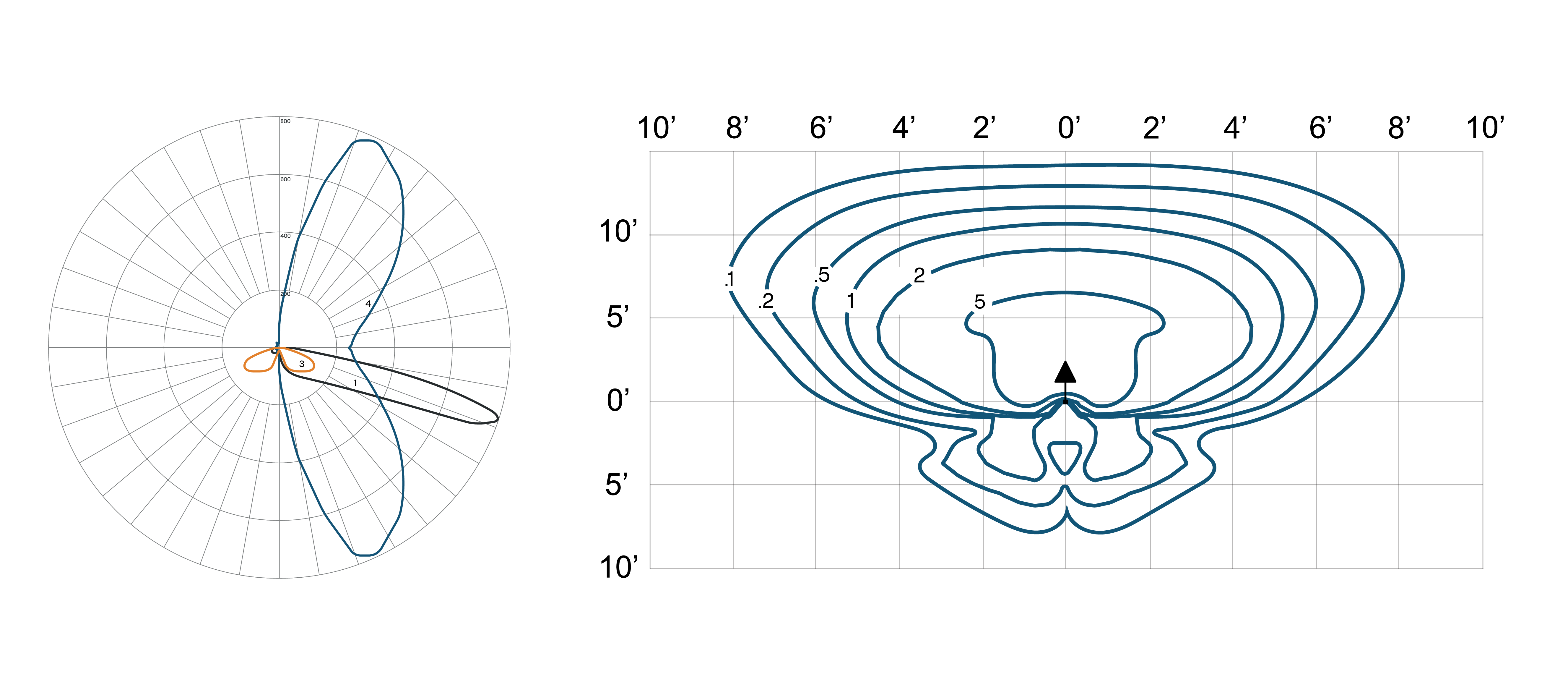

Type III

Two complex contour plots with grid lines: the left plot is circular with blue and orange curved contours, and the right plot is rectangular featuring layered blue contours.

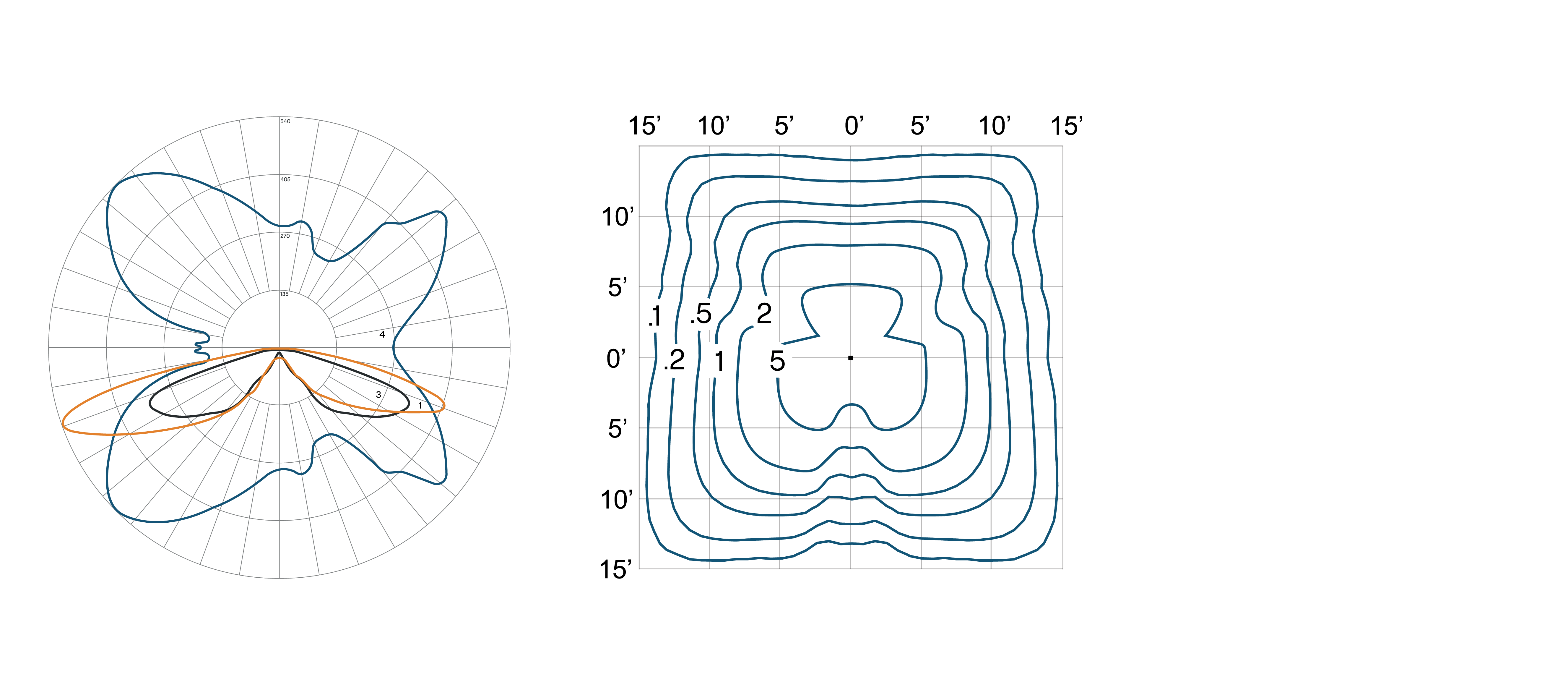

Type V

Two scientific contour plots side by side, one circular with overlaid orange and blue curves, the other square with multiple nested blue contour lines.

Technical Specifications

Technical Specifications

Style
Contemporary LED Bollard
Fixture Diameter
Top diameter: 10 in (24.7cm)
Post diameter: 6 in (15.2cm)
Fixture Height
14 in (36.7cm)
35 in (88.9cm)
Construction
Rugged cast-aluminum
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Silver, White or Custom color

Mounting Specifications

Mounting Options
Cast aluminum mounting plate on concrete footer

LED Engine & Controller

Lumen Output
740 to 1200 lm
Color Temperature & Amber Options
4000K
3000K
2700K
Amber (595nm), FWC Certified
LED Lifetime
100,000 hour LED L70 lifetime
Control
• 10W power consumption
• High-efficiency integrated LED driver
• >0.98 power factor at full load
• 110 - 277 VAC, 47 - 63Hz input range
• OCP, SCP, OVP protection, auto recovery
• AC Phase - trailing-edge dimming compatible

Optical Performance

Optical Performance
High-efficiency type III, and V full cutoff optics
B0 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

FLT - PLB-AC
PDF Download

IES Files

PLB-AC IES Files
PDF Download

Installation

PLB-AC Installation Instructions
PDF Download

Ideal Applications

Parking Lots

PLB - AC is engineered for optimal performance in parking lots environments.

Pathways

PLB - AC is engineered for optimal performance in parking lots environments.

Plazas

PLB - AC is engineered for optimal performance in parking lots environments.

Wildlife Settings

PLB - AC is engineered for optimal performance in parking lots environments.

Reliability & Warranty

•
5-year limited warranty
•
20-year lifespan
•
IP67 protection
•
CSA C22.2 No. 250.0-08 - ANSI / UL Standard 1598
•
ANSI / UL Standard 8750
•
CSA C22.2 No. 250.13-14
